LUGB Vortex Flow Meter

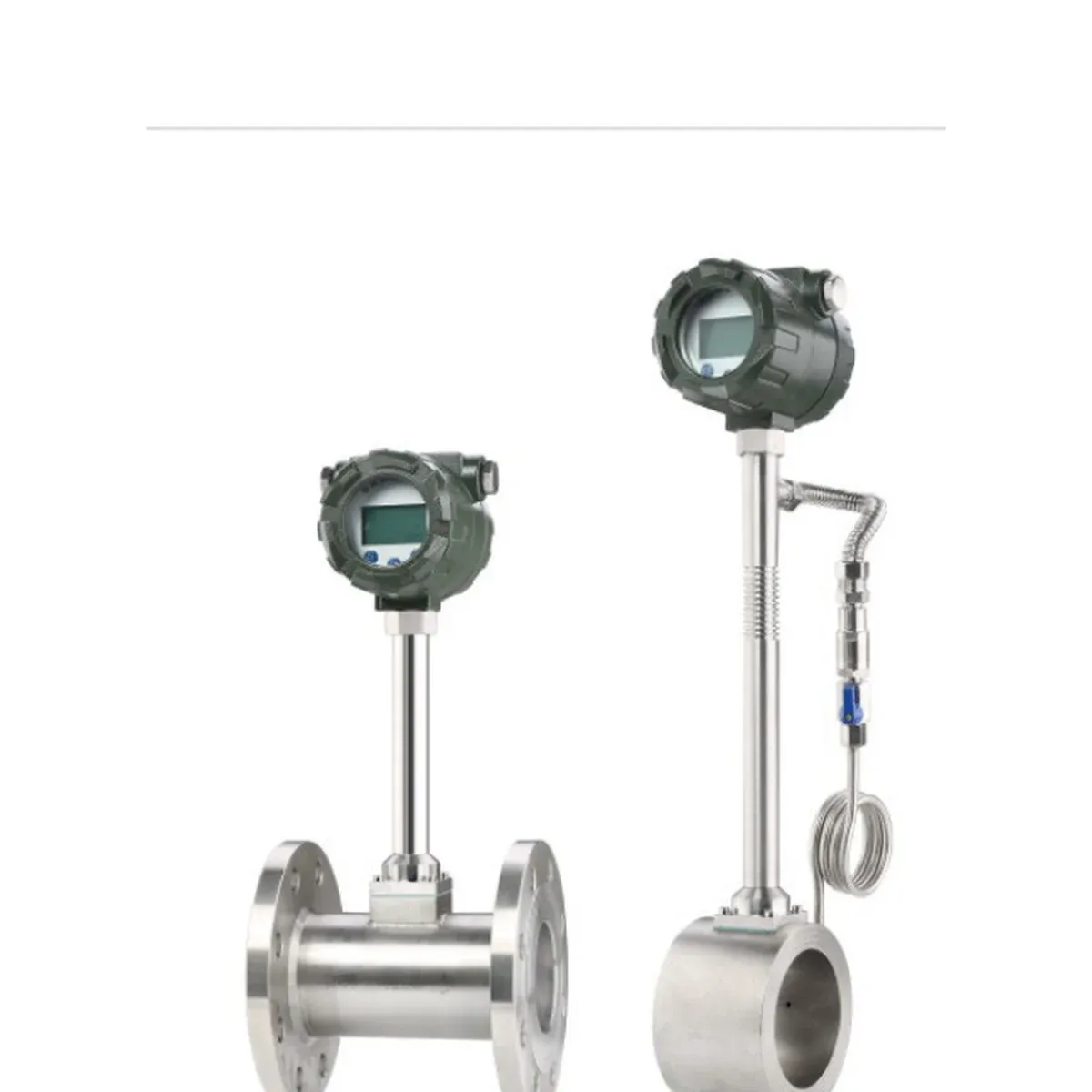

LUGB Vortex Flow Meter with Temperature and Pressure Compensation
LUGB vortex flow meter with temperature and pressure compensation for gas and steam measurement where density changes must be corrected.

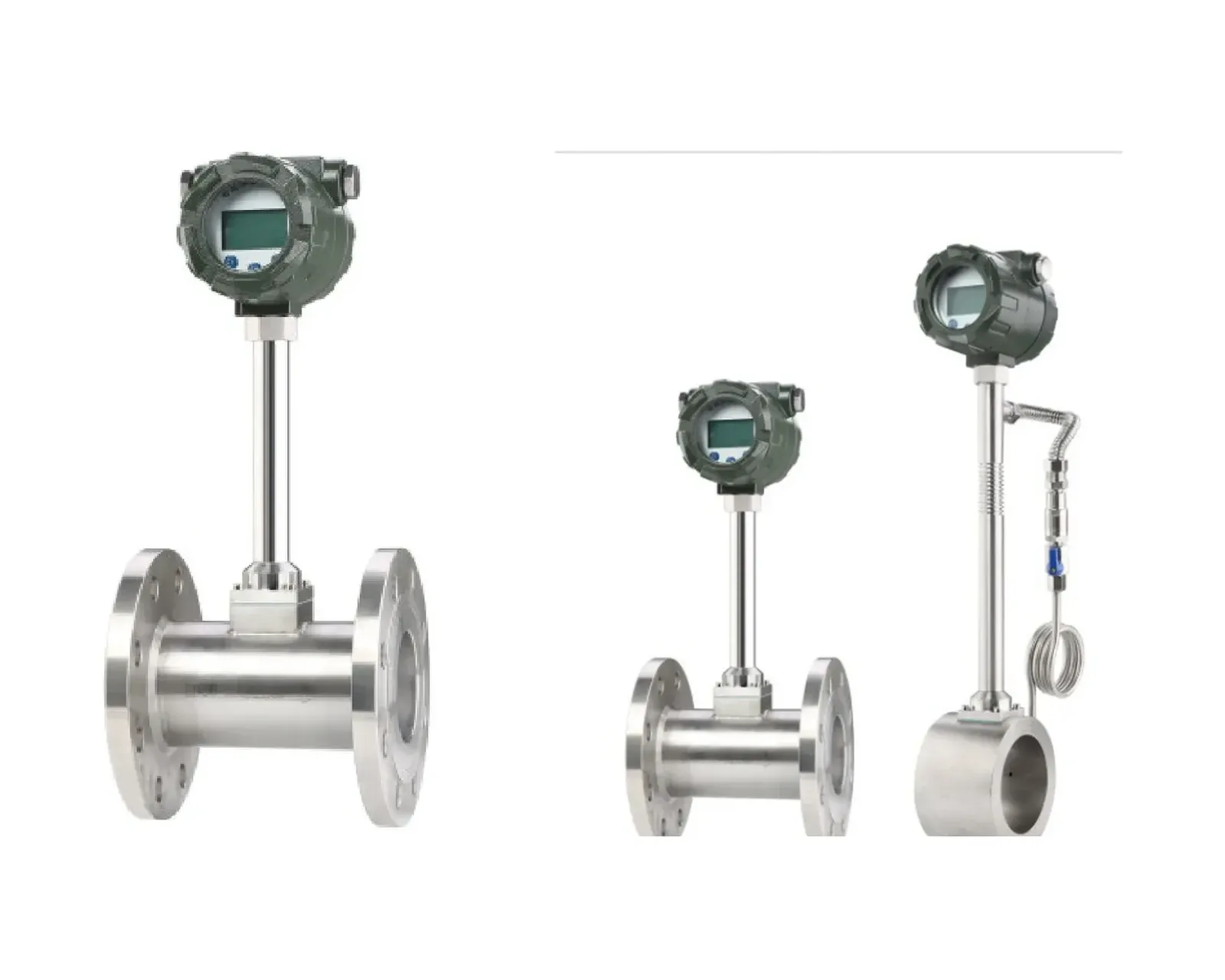

Product family
Vortex Flow Meters
LUGB vortex flow meters for gas, liquid and steam from DN15 to DN300, with an optional temperature and pressure compensation version.
• For gas, liquid and steam • Flange DN15 to DN300 • Temperature/pressure compensation available
Products in this family
Products in this family
Currently published products in this family.
View product

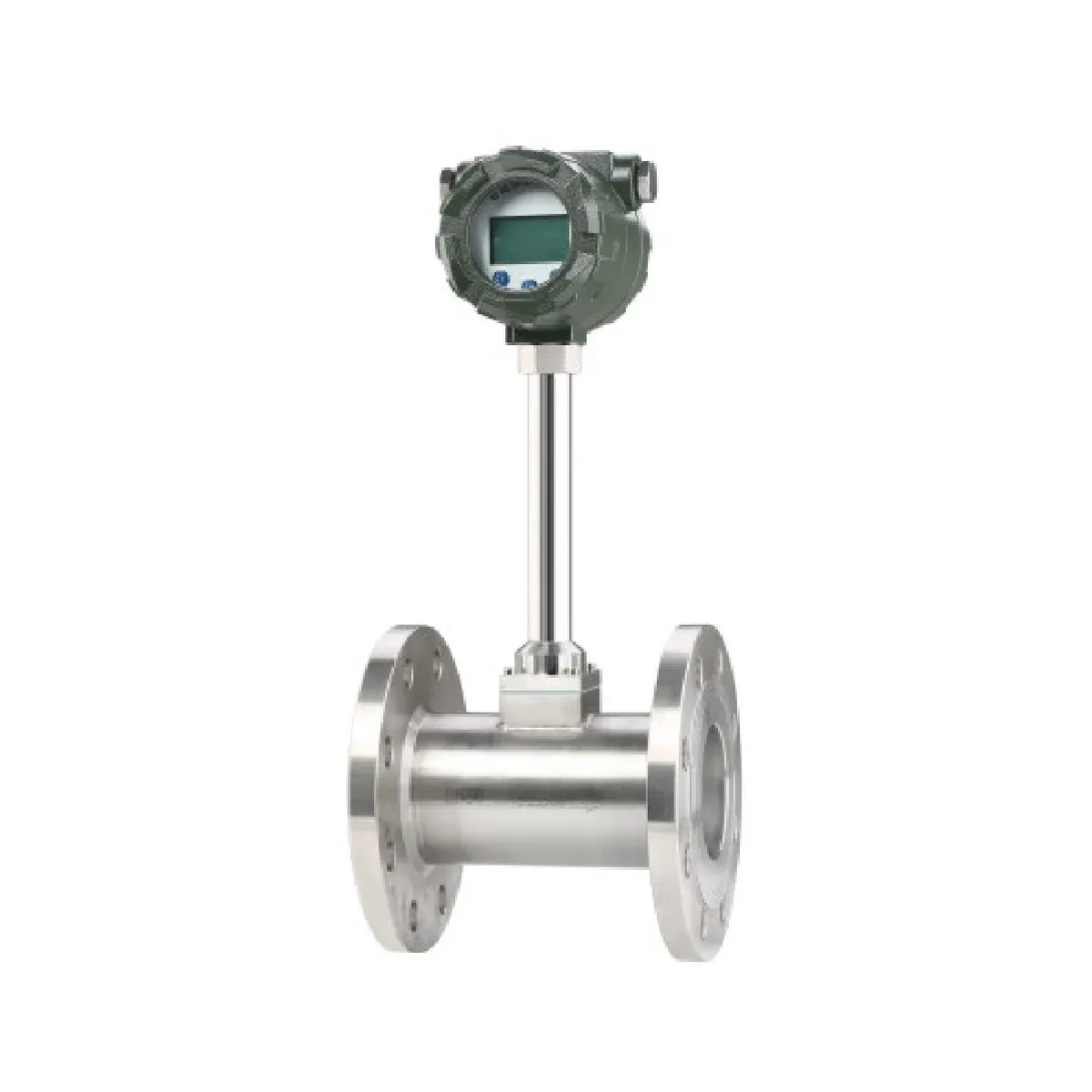

LUGB Vortex Flow Meter
LUGB Vortex Flow Meter
LUGB flanged vortex flow meter for gas, liquid and steam measurement, DN15 to DN300 (flange sizes to DN350).
Selection guidance
How to specify a vortex flow meter
Three inputs decide the LUGB configuration.
011
Medium and phase
LUGB measures gas, liquid and steam. Accuracy is class 1 for liquid and class 1.5 for gas. Choose the compensation option when pressure or temperature of a gas or steam line varies.
022
Pipe size and connection
Flange sizes run DN15 to DN300 (shown to DN350), with clamp DN15-DN200 and sanitary clamp DN25-DN100.
033
Pressure and temperature
Pressure ratings are 1.6, 2.5 or 4.0 MPa. Medium temperature versions cover -25 to +80 °C standard and -25 to +250 °C or +300 °C high temperature.
Get a Quote
Need help choosing a vortex flow meter?
Send the medium, pipe size, flow range, pressure and temperature and we will confirm whether temperature or pressure compensation is required.
Include
Medium, pipe size, flow range, pressure, temperature and output.
